The DC-max motors from maxon are designed to deliver maximum performance in a compact size,
offering an exceptional price-to-performance ratio.

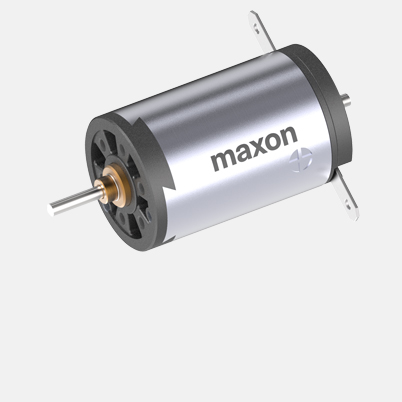

The DC-max 16 is a compact and powerful motor,
equipped with high-quality RE magnets and advanced winding technology.
It features a cost-effective design and is manufactured using automated production processes to ensure consistent quality and affordability.
Nominal voltage- 6 V
Nominal speed 4840 rpm-
Stall torque -10.5 mNm
Stall current -1.46 A
Terminal resistance- 4.1 Ω
Ambient temperature- -30 to +65 °C
Bearing type- Waelzlager
Max. speed 11000 rpm
Weight 23 g
