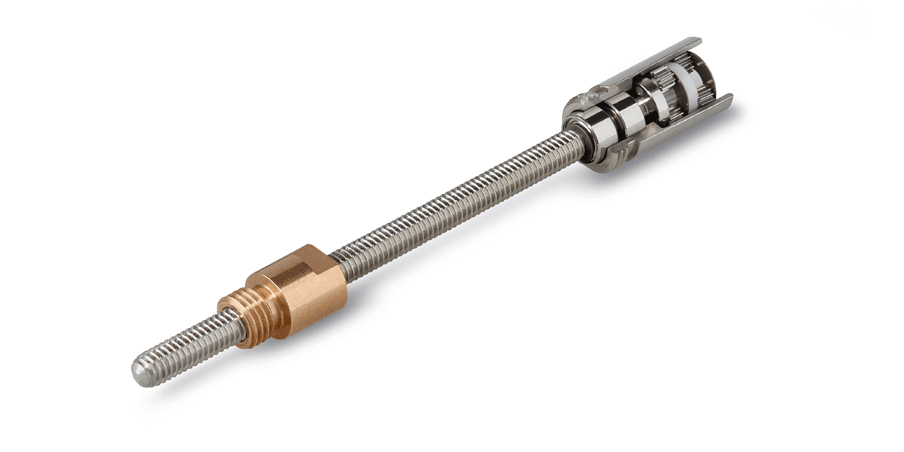

Compact, easily configurable screw drive as complete systems
With integrated ball bearings for high axial loads.
Versions with metric ceramic or metal spindle.
Custom lengths and special flange nuts also available
Gearhead type GP
Gearhead length (L1) 14.5 mm
Reduction 221 : 1
Max. motor shaft diameter 1 mm
Spindle length 40.4 mm
Bearing at output ball bearing
Max. continuous input speed 12000 rpm
temperature range -15 to +80 °C
Weight 4 g
