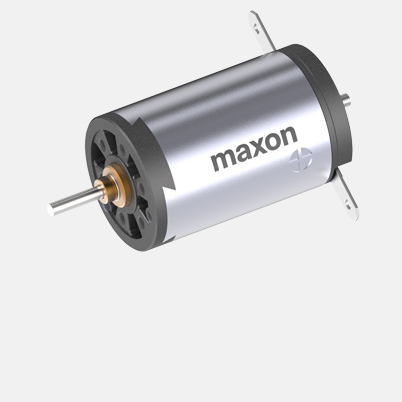

motors feature maximum performance at minimum volume
an unrivaled price-performance ratio.
small drive with strong RE magnets,
the latest winding technology, and a cost-optimized design
Nominal voltage 12 V
Nominal speed 4400 rpm
Stall torque 9.44 mNm
Stall current 0.629 A
Terminal resistance 19.1 Ω
Ambient temperature- -30 to +65 °C
Bearing type Waelzlager
Max. speed 11000 rp
Weight 23 g
Rotor inertia 1.05 gcm²
