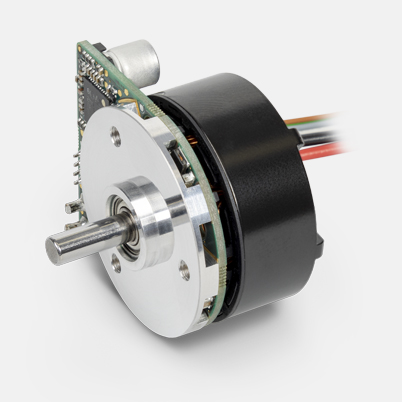

The compact brushless ECX FLAT motors with integrated 4-Q speed controller
speed-controlled 4-quadrant drive.
It combines the advantages of a flat motor with the performance of an integrated
comprehensive protection system
used in Fans and ventilators, Pumps ,Laboratory application, Measuring systems, Printers
Nominal power supply voltage 24V
Nominal speed 10000 rpm
torque at 25°C - 73.9
Rotor inertia of the drive 30.7 gcm2
Ambient temperature -25 to +85 °C
Weight of the drive 71.2 g
