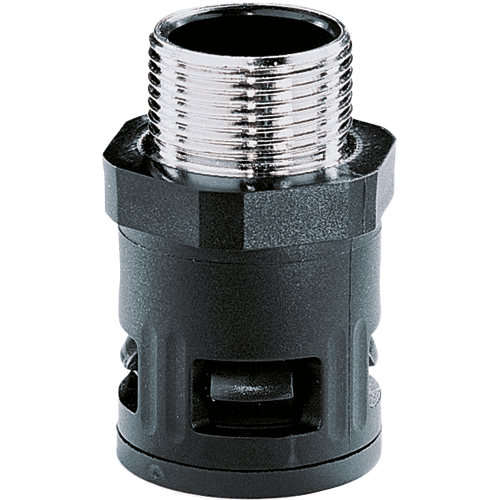

RQGKST-M | metric thread

Connectors Corrugated tubing feedthrough, quick-type, straight, metric nickel-plated brass outer thread, integrated snap-in sleeve with sealing, high density, EN 45545-2 (HL3), incl. O-ring (OR) and flat sealing (FRH)

Material : PA plastics | nickel-plated brass 58
Temperature : -50°C ... +120°C
IP class [acc. to EN 60529]: IP 68 | IP 69K rational tubing assembly due to one-piece connector with push-in lock for corrugated tubings with coarse and fine profile
simple dismounting by displacing the snap-in sleeve
smallest out dimensions to be used under confined conditions
free of silicone, cadmium and halogen - self-extinguishing
fit for high mechanical stress
impact-resistant
high torque of thread connection
REACH and RoHS compliant
