cables are designed to support high-speed data transmission with a bandwidth of 600MHz over a distance of 100 meters
Designed for fixed and protected installations in rail vehicles and buses.
Supports PoE/PoE+ (IEEE 802.3af/at) for power delivery up to 350/600 mA and 48 V.
Suitable for multimedia applications (data, voice, video)

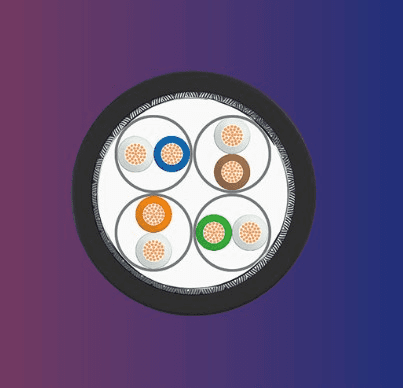

Pair shielding with Al-foil and overall copper braid
Diameter Approx 6.60 mm, Light Weighted aprox 54 kg/km
Insulation material is Cellular PE
Nominal Voltage: 125 V AC
Temperature Range: -40 °C to +80 °C
Bandwidth: 1200 MHz
Flame-retardant with minimal flame spread
High resistance to ozone, cold, oil, fuel, acid, and alkali
Capable of high-speed data transmission with PoE/PoE+ support
