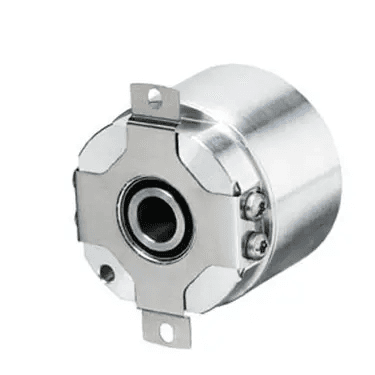

The AD36 is an optical absolute encoder with a multi-turn gear and optical scanning, size 36 mm. As the only model in its class, it offers an 8 mm through hollow shaft, which allows resolver-compatible installation.
For brushless servomotors./Installation compatible with resolver size 15./With 8 mm through hollow shaft./19 bits single-turn + 12 bits multi-turn./-40°C to +120°C operating temperature./10,000 rpm in continuous operation./Geared optical multi-turn./SSI or BiSS interface./Sinewave 1 Vpp./500 kHz bandwidth
